RCS Series

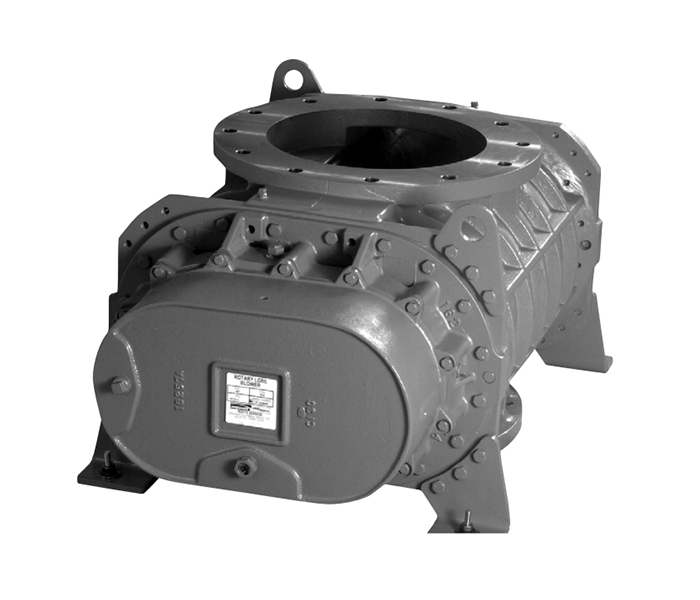

RCS rotary blowers are heavy-duty units designed with integral-shaft ductile iron impellers having an involute profile. The headplates, gear cover, end cover and rigid, one-piece casing are grey iron. Carburized and ground alloy steel spur timing gears are taper mounted on the shafts, secured with a locknut. Cylindrical roller bearings are used on the drive end with ball bearings on the gear end.
Standard RCS units are available an 8” gear diameter only.
Units with the J designation for WhispairTM cylinder design are available in 7” and 8” gear diameters.
- Reduced backflow pressure pulsations to achieve quieter operation, reduced vibrations, and improved bearing life.
- RCS Series Performance1
- Flow up to 4,822 cfm
- Pressure up to 15 psig
- Vacuum up to 16” Hg
- RCS-J Series Performance1
- Flow up to 5,610 cfm
- Pressure up to 18 psig
- Vacuum up to 16” Hg
